SAP CPI Message Mapping with Groovy Scripts: Advanced Data Transformation Techniques
Posted on October 30, 2025 by Laeeq Siddique
Introduction
Mastering Groovy-based message mapping (and of course, Java as well at some point) can really enhance your capability to face the most challenging data scenarios, no matter if you are a senior SAP professional or whether just beginning in integration development.
In this post, we will look into how Groovy scripts can contribute to the out-of-the-box message mapping feature in SAP Cloud Platform Integration(CPI), allowing developers to build advanced transformations, conditional logic, and real-time messaging processes with immense flexibility.
Why to target SAP CPI Message Mapping?
As companies scale, they navigate through many systems, pushing massive amounts of data in different formats (XML, JSON and CSV). These transformations are difficult and tedious to perform manually.
Here’s where SAP CPI Message Mapping is born — it’s the driver of successful data integration, making sure data moves smoothly between apps in the proper format and layout.
Advantages of Mapping in SAP CPI. There are many benefits that you can consider it as the key capabilities of Message mapping in SAP CPI.
- Flexibility – Add new data structures and formats as you need them.
- Data Integrity – Maintain integrated integrity over various systems.
- Scalable – Use for enterprise-level data and scale out processing.
- Automation – Minimize human intervention with rule-based mapping.
Pair that with Groovy scripting, and message mapping becomes much more than simply a benign conversation of data — it’s a monstrous metamorphosing leech sigma machine which extends your organization’s ability to implement business rules, validations, dynamic logic in the blink of an eye!
Taking your data transactions to the next level
Groovy is a robust out-of-the-box language for the Java platform that perfectly complements SAP CPI. The declarative framework allows developers to extend beyond what is possible with classical mapping by adding dynamic logic, custom computations and advanced data manipulation.
Groovy Scripts: Unlocking New Levels of Data Transformation
Groovy is a powerful scripting language built on the Java platform that seamlessly integrates with SAP CPI. It enables developers to go beyond the limits of traditional mapping by incorporating dynamic logic, custom calculations, and complex data operations.
Why Use Groovy in SAP CPI Message Mapping
- Extended Functionality: Perform advanced transformations not possible through graphical tools.
- Reusable Logic: Write once, reuse in multiple mappings or integration flows.
- Data Flexibility: Modify XML or JSON payloads dynamically.
- Improved Maintainability: Centralize logic for better control and debugging.
Groovy scripting empowers integration developers to handle exceptional cases — such as filtering invalid data, manipulating nested structures, or calling external APIs during message processing — all within the CPI environment.

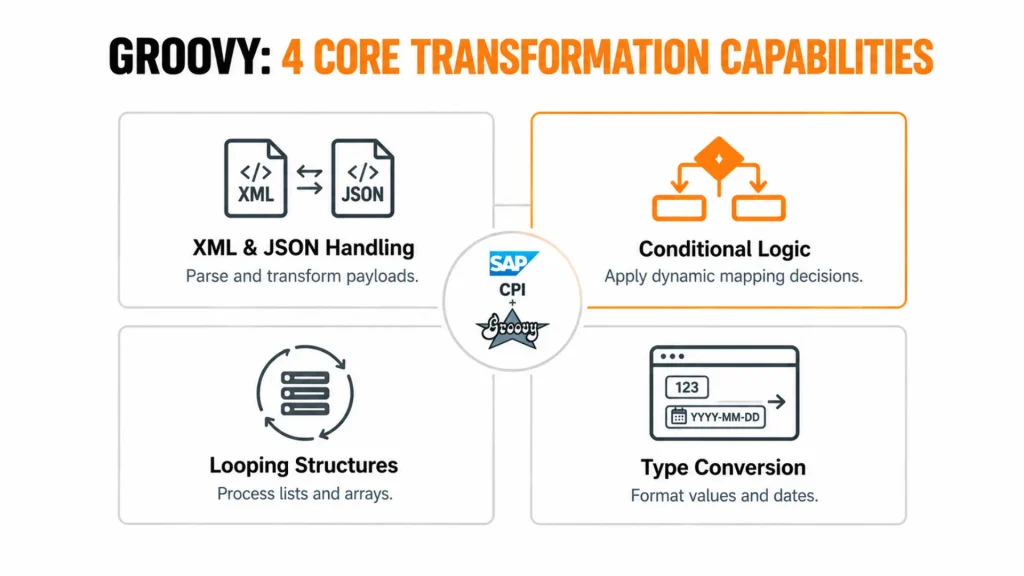

Core Components of Groovy in Message Mapping
To make the most out of SAP CPI Message Mapping with Groovy Scripts, understanding the essential components is key:
- XML and JSON Handling: Groovy’s built-in XML and JSON libraries simplify parsing and transformation.
- Conditional Logic: Use if-else statements to make mapping decisions dynamically.
- Looping Structures: Iterate through arrays or lists to transform multiple elements.
- Type Conversion: Convert strings to numbers, format dates, or handle null values gracefully.
Example – Transforming XML Data Using Groovy
def body = message.getBody(java.lang.String)
def xml = new XmlSlurper().parseText(body)
def updatedXml = xml.items.item.findAll { it.price.toDouble() > 100 }
message.setBody(groovy.xml.XmlUtil.serialize(updatedXml))
return message
This example filters out products priced below 100, ensuring that only relevant records proceed to the next system — an operation not easily achievable through standard mappings.

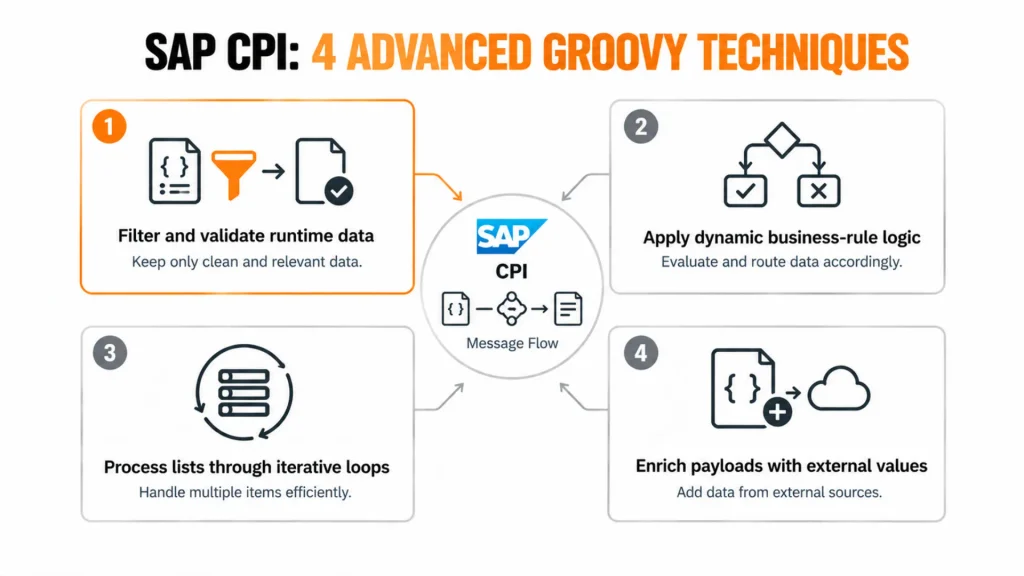

Advanced Data Transformation Techniques with Groovy
Once you understand the basics, Groovy enables a wide range of advanced data transformation techniques to optimize SAP CPI message mapping workflows.
1. Data Filtering and Validation
Filter and validate data at runtime to ensure only clean, accurate, and relevant records move forward.
if(order.status == ‘Cancelled’) return null
This kind of conditional filtering prevents unnecessary data load and improves integration efficiency.
2. Conditional Logic Implementation
Dynamic decision-making allows CPI to transform messages based on business rules, such as regional formats or currency.
if(country == ‘US’) amount = amount * 1.07
Such logic ensures your data reflects real-time business rules.
3. Iterative Processing of Data
When handling lists or arrays, Groovy loops enable fine-grained control:
orders.each { order ->
println “Processing Order ID: ${order.id}”
}
This allows consistent processing of all elements without manual repetition.
4. Data Enrichment with External Values
Groovy can also fetch external data or inject calculated values into the payload — for example, adding tax rates or timestamps dynamically.
By using message.setProperty() or external API calls, integrations become smarter and more context-aware.
Working with Tables & Formats in SAP CPI Mapping
Structured visualization of mappings makes understanding transformations easier. Below is a simple example:
| Source XML Field | Target XML Field | Transformation Rules |
| customer/name | client | Direct mapping with text formatting |
| customer/age | client_age | Convert string to integer |
| order/item[] | purchased_items[] | Loop through each item for transformation |
| order/date | transaction_date | Convert to ISO 8601 format |
By designing clear mapping tables, developers can document complex transformations and ensure accuracy throughout the integration lifecycle.
Common Challenges and How Groovy Solves Them
1. Complex Business Logic
Standard mapping tools can struggle with advanced scenarios such as conditional transformations or dependent field calculations. Groovy simplifies this by supporting inline logic and reusability.
2. Handling Null or Missing Values
Groovy gracefully manages missing data using safe navigation (?.) and default values:
def city = customer?.address?.city ?: “Unknown”
This prevents runtime errors and ensures robust execution.
3. Performance Optimization
For large datasets, developers can streamline Groovy code by avoiding redundant parsing and focusing on reusable functions — ensuring faster, more efficient processing.
Best Practices for SAP CPI Message Mapping with Groovy Scripts
Following best practices ensures that your Groovy-enhanced mappings remain maintainable and efficient:
Use meaningful variable names for better readability.
Modularize your scripts into functions for reusability.
Keep transformations lightweight and avoid unnecessary loops.
Log key steps to aid debugging and monitoring.
Test mappings using sample payloads before deployment.
By applying these best practices, developers can create integration solutions that are both powerful and maintainable over time.
Integrating Groovy with Message Mapping Functions
Groovy scripts can also be embedded directly within Message Mapping Functions in SAP CPI. This allows developers to:
- Access message properties dynamically.
- Perform field-level transformations.
- Inject external logic into existing mapping structures.
Example:
def transformName(String name) {
return name?.toUpperCase()
}
This small function can be reused across multiple mapping fields to standardize data formatting effortlessly.
Debugging and Troubleshooting Groovy Scripts
Even the best integrations can fail without proper testing and monitoring. Use message logs and the trace functionality in SAP CPI to identify and fix issues quickly.
Quick Debug Tip:
def log = messageLogFactory.getMessageLog(message)
log.addAttachmentAsString(“DebugInfo”, “Payload: ” + message.getBody(String), “text/plain”)
This helps monitor transformations and inspect runtime values directly from the message monitor.
Conclusion
SAP CPI Message Mapping with Groovy Scripts is the go-to resource for Integration Consultants. Ultimately, by leveraging the flexibility of Groovy and SAP CPI’s mapping framework, developers are able to implement more sophisticated, faster, and reliable data transformation logic.
Dynamic routing, custom validation, or multi-format handling no matter what you are trying to do, Groovy scripting opens up another world of possibilities with SAP CPI integrations.
Continue to hone your skills, automate as much as you can and leverage best practices the smarter you get applying Groovy in your mappings the more effective your integration architecture will be.
