Introduction

Do you struggle with dynamic data or more advanced routing in your SAP CPI Content Modifier and Exchange Properties integrations?

You are not alone; a lot of integration consultants and developers struggle to work in an efficient way with message content, headers, and properties in SAP CPI Integration. No need to let them become clunky, error-prone, and difficult to maintain.

This is where this Ultimate guide to SAP CPI Content Modifier and Exchange Properties comes in.

You will learn expert tips for setting up and customizing message processing and controlling it from scratch, handling data like a pro, manually or dynamically setting headers on the fly, and writing your routing logic.The more you can master these tools the more resilient, flexible, and performant the integration flows built to have your operation experiences running smoothly across systems.

Understanding SAP CPI Content Modifier

The SAP CPI Content Modifier is a vital element that allows users to alter message content, headers, properties, and attachments at runtime. It empowers developers to dynamically modify the payload and metadata of a message as it flows through different integration steps.

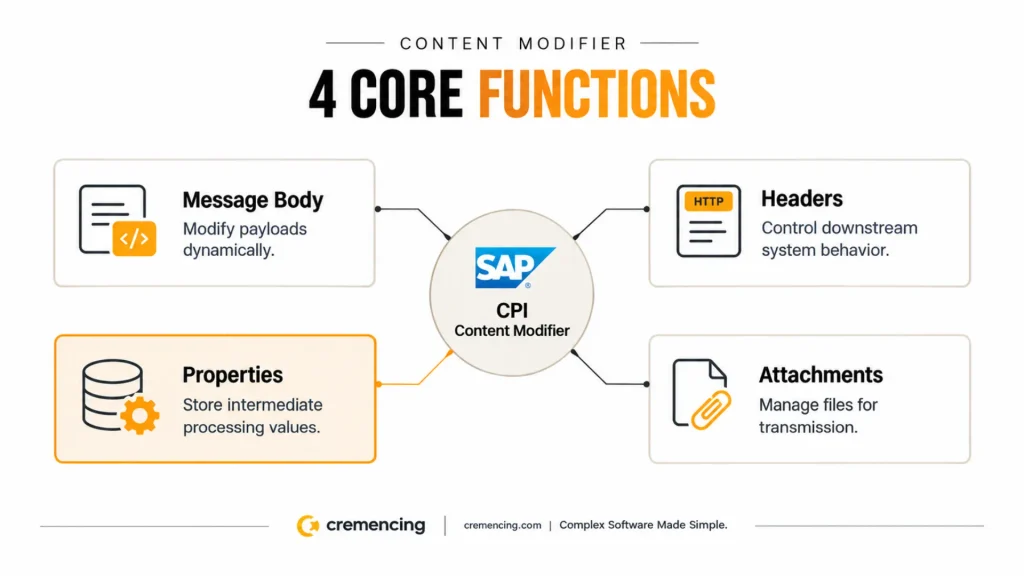

Key Functions of the Content Modifier

• Message Body Manipulation: Change or replace message payloads dynamically.

• Header Customization: Set or update message headers to control downstream systems.

• Property Configuration: Define and manage exchange properties to store intermediate values.

• Attachment Handling: Modify or attach files required for data transmission.


In simpler terms, the Content Modifier allows your integration to “adapt on the go,” ensuring every message meets your business logic before reaching its destination.

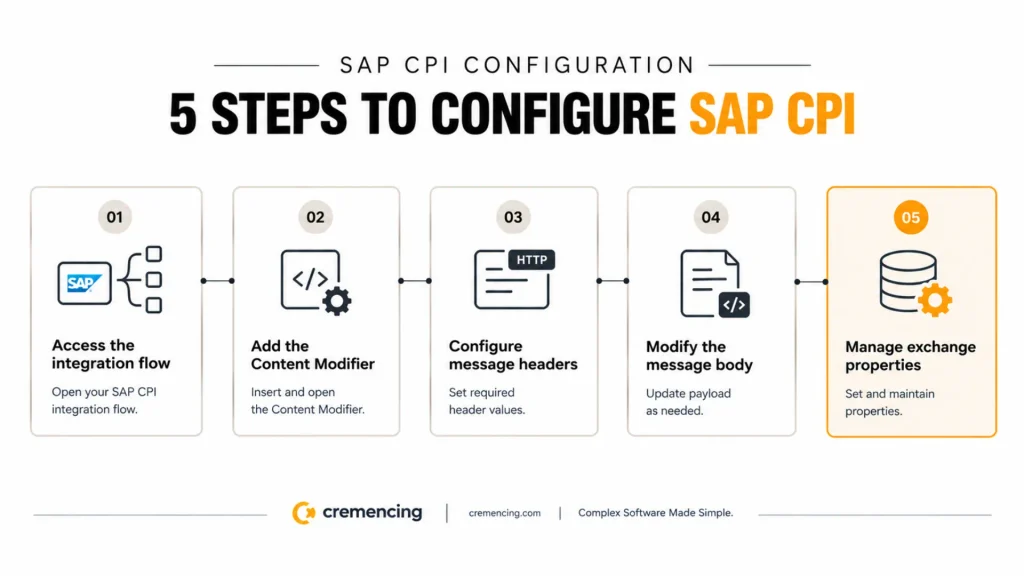

Configuring the Content Modifier

Step 1: Accessing Integration Flows

Log into your SAP CPI tenant, open the relevant integration package, and access the integration flow where you want to introduce dynamic data handling.

Step 2: Adding the Content Modifier

In the integration flow editor, drag and drop the Content Modifier step. You’ll now see multiple tabs — Message Header, Message Body, and Exchange Property — each designed for specific configurations.

Step 3: Setting Message Headers

You can define static or dynamic headers that control behavior in subsequent steps. For example, setting an HTTP header like Authorization or Content-Type dynamically can ensure flexible API calls.

Step 4: Modifying the Message Body

Use placeholders or expressions (like ${property.CustomerName}) to inject values into XML or JSON payloads, allowing your integration to handle contextual data dynamically.

Step 5: Managing Exchange Properties

Exchange properties can be used to store and pass data between steps — for instance, calculating totals or preserving temporary information for decision-making later in the flow.

Exchange Properties in SAP CPI

Exchange Properties are special variables used during message processing in SAP CPI. They are not sent to external systems but play an essential role within the integration flow.

Core Capabilities:

• Temporary Data Storage: Hold intermediate values during processing.

• Conditional Logic: Control routes and branches using property-based decisions.

• Data Enrichment: Use Groovy scripts to calculate or manipulate property values.

• Cross-Step Communication: Pass data between flow steps without altering the main payload.


Practical Example

You can set a property like OrderPriority in one Content Modifier and use it later in a Router Step to decide which backend system should process the order.

For instance:

${property.OrderPriority} = ‘High’

Then, in the router condition:

${property.OrderPriority} == ‘High’

This approach creates a powerful and flexible decision-making mechanism within CPI.

Real-World Use Cases

Use Case	Description
Dynamic Message Handling	Modify invoices or purchase orders dynamically to include calculated discounts or tax fields.
API Header Management	Set dynamic API keys or tokens for REST integrations.
Routing Based on Exchange Properties	Route messages by region, priority, or business rules.
Custom Logging	Store timestamps or IDs in properties for advanced monitoring and logging purposes.

Integrating Groovy Scripts with Content Modifier

While Content Modifier can handle most configurations through expressions, Groovy scripting takes flexibility to the next level.

When to Use Groovy Scripts:

• Complex string manipulations or JSON transformations

• Iterative loops or conditional logic

• Integration with external APIs or libraries


For example, a Groovy script can extract order IDs, calculate totals, or format timestamps before assigning them to a property using:

def orderId = message.getBody(String)

message.setProperty(“OrderID”, orderId.trim())

return message

By combining Content Modifier and Groovy scripts, you achieve greater customization and control over message flow.

Best Practices for SAP CPI Message Modification

1. Use Consistent Naming Conventions
   Always use clear and structured names for headers and properties (e.g., CustomerRegion, InvoiceType) to simplify debugging.

2. Validate Dynamic Expressions
   Test all dynamic expressions thoroughly to avoid runtime errors.

3. Minimize Redundant Modifiers
   Instead of multiple modifiers, consolidate related changes into one for efficiency.

4. Audit and Monitor Regularly
   Review exchange properties to ensure they’re still relevant to current business logic.

5. Leverage Scripts for Complex Logic
   Use Groovy scripts only when the expression language can’t handle the requirement to maintain readability and performance.


Integrating Content Modifier with External Systems

SAP CPI allows seamless integration with cloud applications like SAP S/4HANA, SuccessFactors, Salesforce, and Ariba.

• Dynamic Header Usage: You can set Authorization headers using properties fetched from secure storage.

• Error Handling: Use exchange properties to capture error details and pass them to custom alerting mechanisms.

• Performance Tracking: Store timestamps in properties for latency monitoring between message steps.


This enables more transparent and reliable data exchanges between SAP and non-SAP systems.

Advanced Tip: Using Content Modifier in Parallel Flows

For complex integrations with parallel message flows, Content Modifiers can be used in each branch to ensure consistent data transformations.

For example:

• In one branch, modify the body for customer notification.

• In another branch, prepare a backend update payload.


By maintaining isolated exchange properties in each branch, you can ensure data integrity across all routes.

Troubleshooting Common Issues

Problem	Possible Cause	Solution
Missing Property Value	Property not initialized properly	Ensure property is set before being accessed
Incorrect Header Value	Overwriting header in later step	Recheck header order and precedence
Groovy Script Errors	Syntax or null references	Use try-catch blocks for safer scripting
Payload Overwritten	Body field replaced unintentionally	Use expression-based modifications selectively

Conclusion

Mastering the SAP CPI Content Modifier and Exchange Properties is vital for creating agile and dynamic integration flows. These tools form the backbone of message transformation, dynamic routing, and contextual processing within SAP CPI.

By applying the practices discussed from configuring message headers and exchange properties to integrating Groovy scripts you can ensure efficient, scalable, and error-free data integration across systems.

The SAP CPI Content Modifier and Exchange Properties together provide unmatched flexibility, empowering integration developers to build intelligent, adaptive, and business-driven workflows
